1600W balcony photovoltaic energy storage system controller Smart Solar Hub supports remote APP monitoring

Description

1600W balcony photovoltaic energy storage system controller Smart Solar Hub supports remote APP monitoring

Model:BESSC–H1600

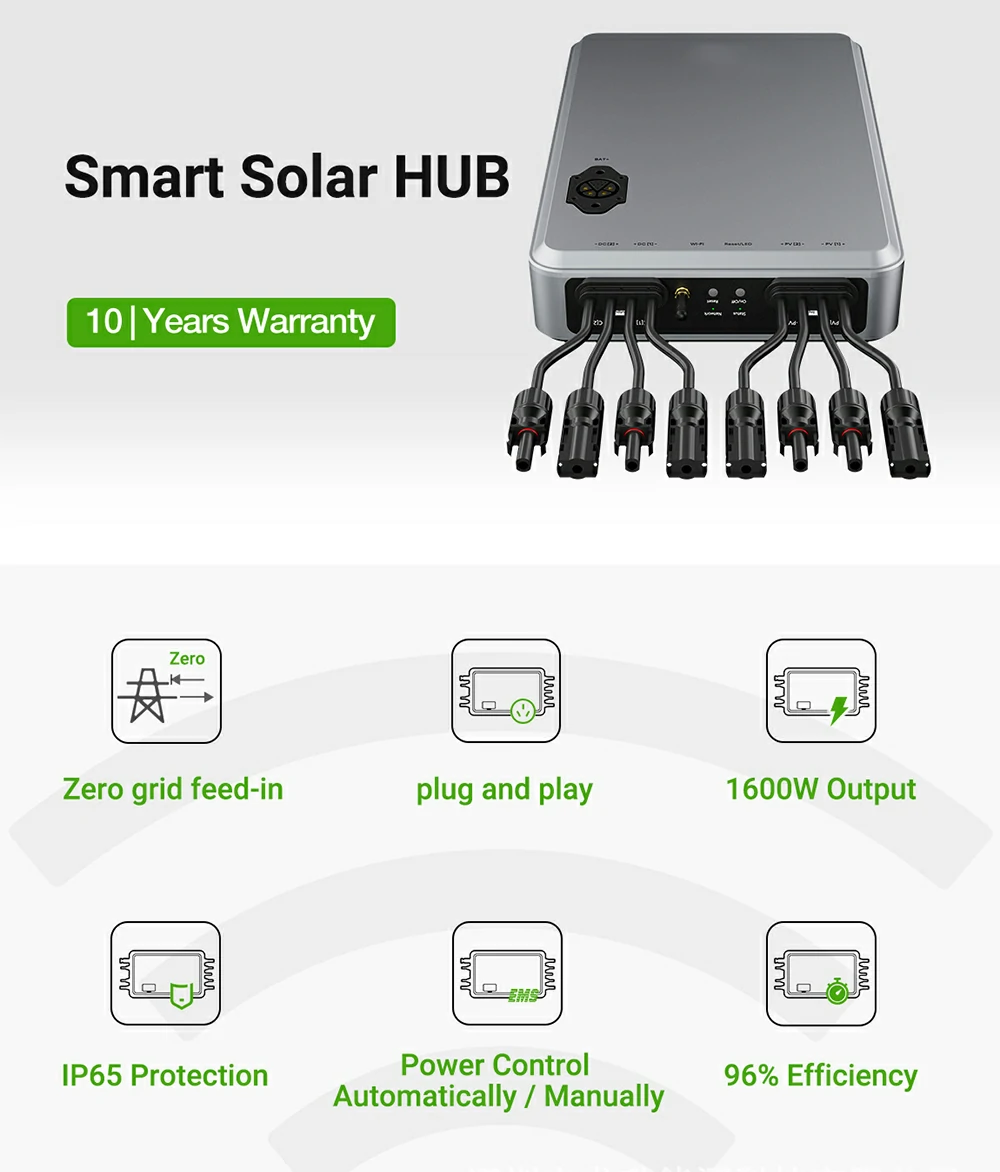

Features

Zero grid feed-in
plug and play
1600W Output
Power Control
96% Efficiency
Automatically /Manually
IP65 Protection

Technical Specifications
Model:BESSC–H1600
Recommended PV module power:800Wx2
PV input voltage:12V-60V
PV input current:25Ax2
PV input power:800Wx2
Battery charging power:1600W
Inverter output voltage:18V-55V
Inverter output current:28Ax2
Inverter output power:1600W
MPPT start voltage:18V
MPPT tracking efficiency:99.90%
Peak conversion efficiency:98%
Working environment temperature:-20°C-65°C
Protection level:IP65
Communication method:RS485/CAN/WiFi
Dimensions:340x213x67mm
Weight:3.2Kg
