Rack-mounted lithium battery family energy storage batteries

Description

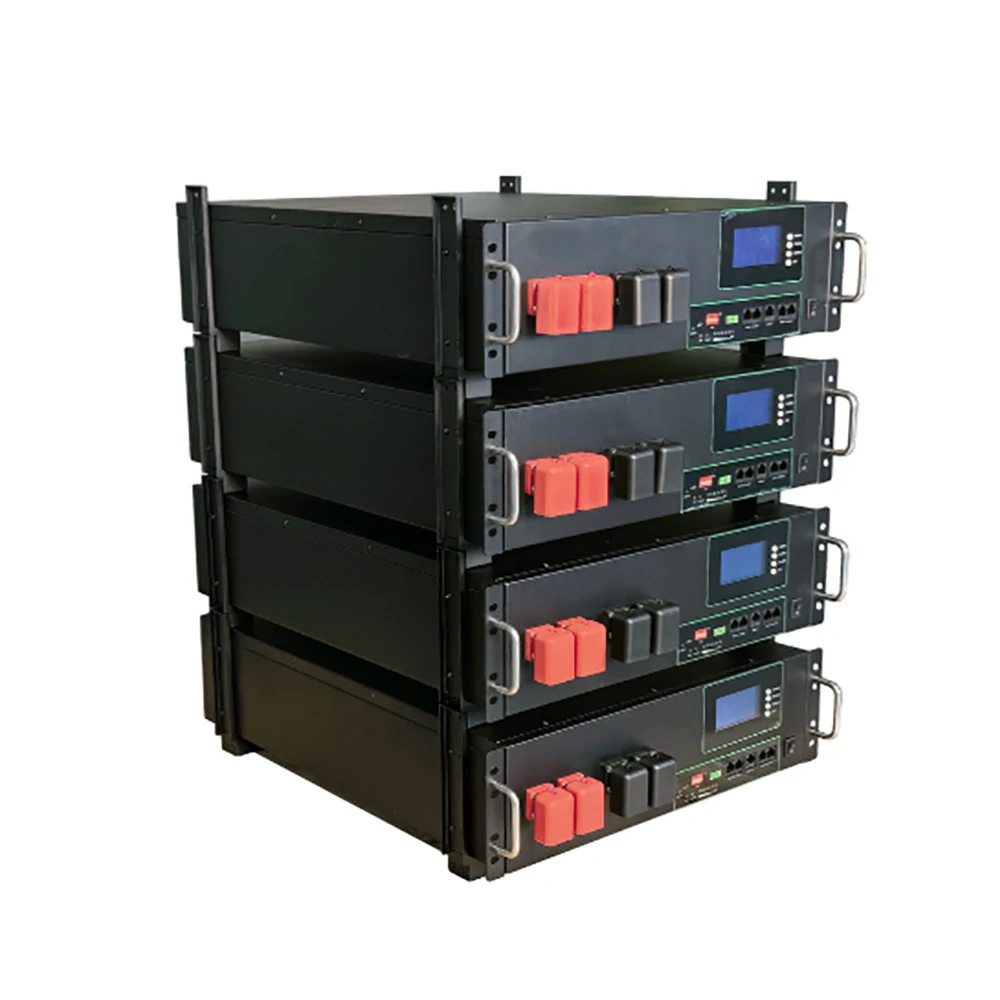

Rack-mounted lithium battery family energy storage batteries

Model:HESS-HC001

3U rack mounted design.
Supports high current discharge, compatible with solar inverters and energy systems.
Intelligent BMS system
3000 cycles or 6000 cycles of battery are optional.
Flexible expansion and easy installation.
CAN/RS485/RS232 communication is optional.
Excellent safety and reliability of lithium iron phosphate batteries.
Intelligent BMS can communicate with hybrid solar inverters of different brands.



Specifications:

Battery:LiFePO4

Terminal:  M6

Storage temperature:0℃~30℃

IP Rate:IP20

Storage duration:6 months at 25 ℃

Safety Standards:UN38.3,MSDS,IEC62619,EN62619,EN61000

Communication:RS485,CAN

Protection:Overcharge protection, over discharge protection, overvoltage protection, short circuit protection, over temperature protection



Product Version:

1.HC001-51.2V100AH

Normal battery voltage (Vdc):51.2V

Normal battery capacity (25 ℃ 0.2C) (Ah):5.12KWH

Operating voltage range (Vdc):44.8~57.6V

Maximum continuous discharge current (A):100A

Maximum pulse discharge current (A):200A 30 Sec.

Maximum continuous charging current (A):50A

Size:575*440*176mm

Pack:624*552*240mm

Weight:48kg/51kg



2.HC001-51.2V200AH

Normal battery voltage (Vdc):51.2V

Normal battery capacity (25 ℃ 0.2C) (Ah):10.24KWH

Operating voltage range (Vdc):44.8~57.6V

Maximum continuous discharge current (A):150A

Maximum pulse discharge current (A):200A 30 Sec.

Maximum continuous charging current (A):100A

Size:575*440*176mm

Pack:624*552*240mm

Weight:60kg/62kg
