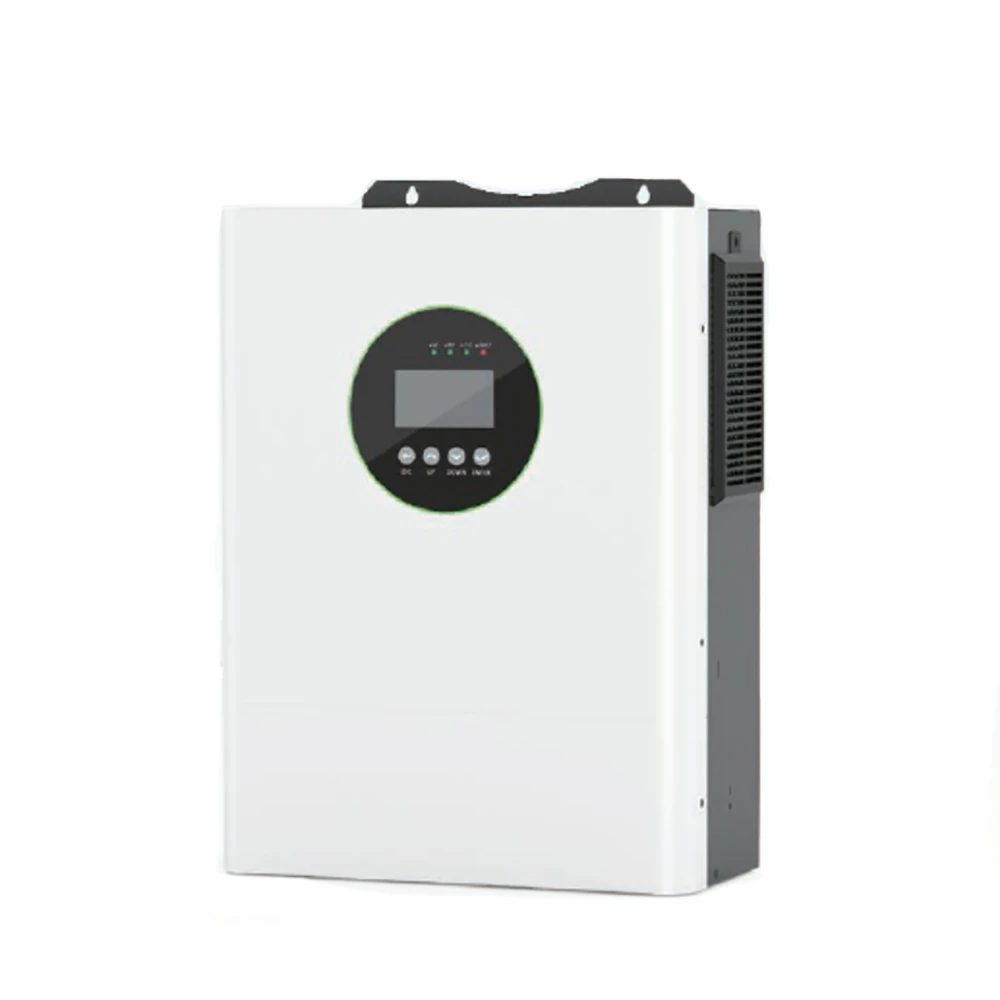

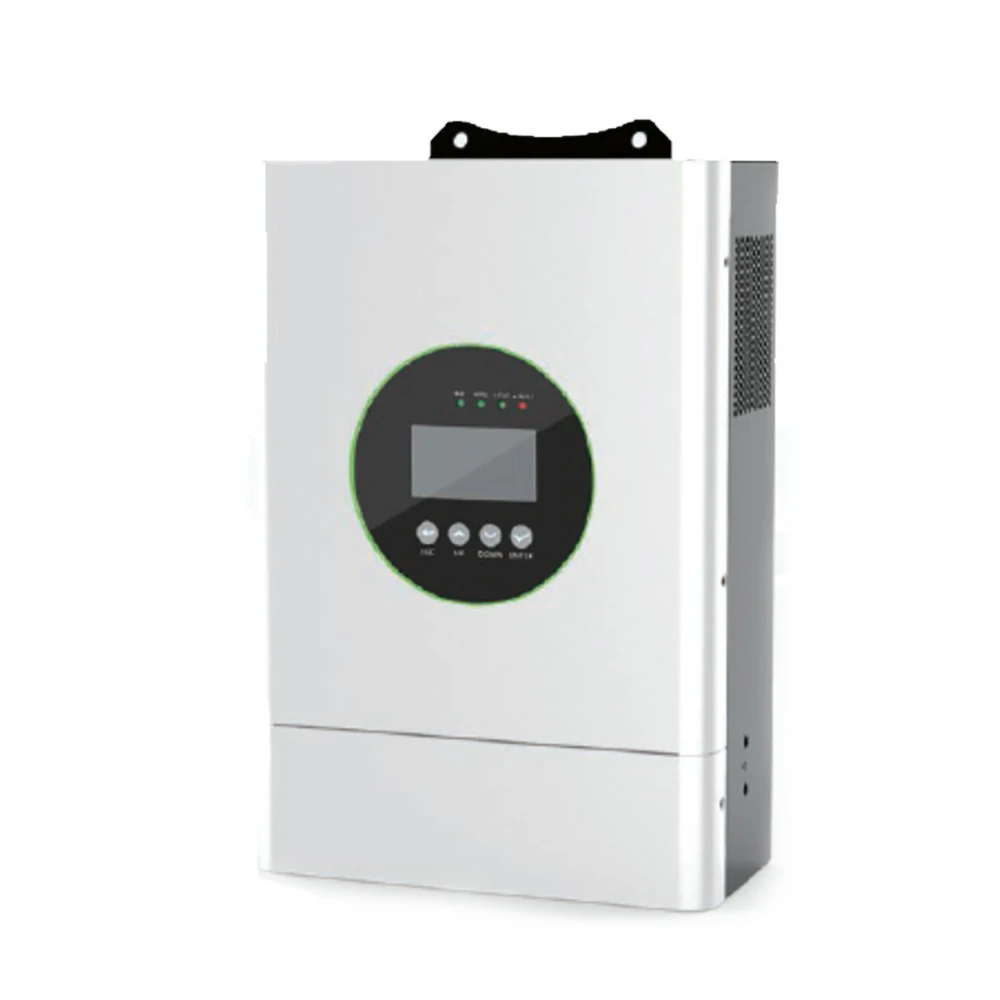

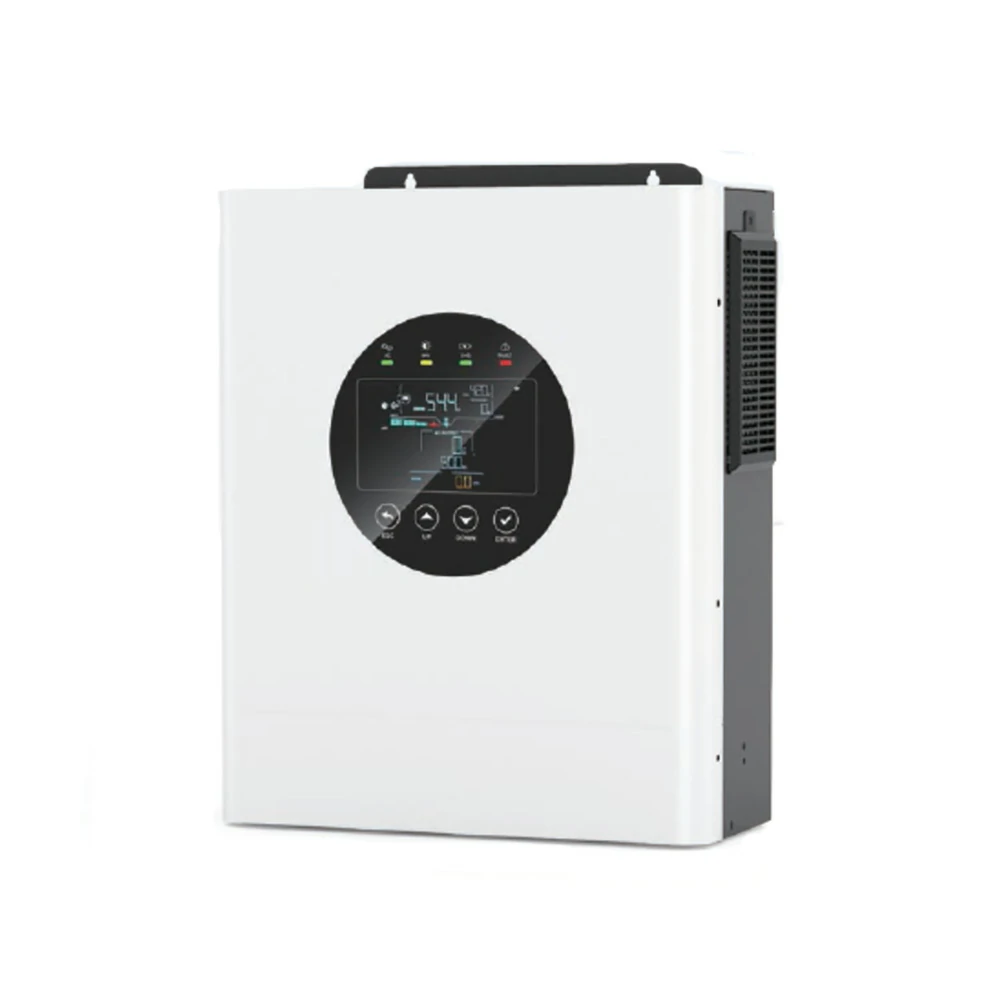

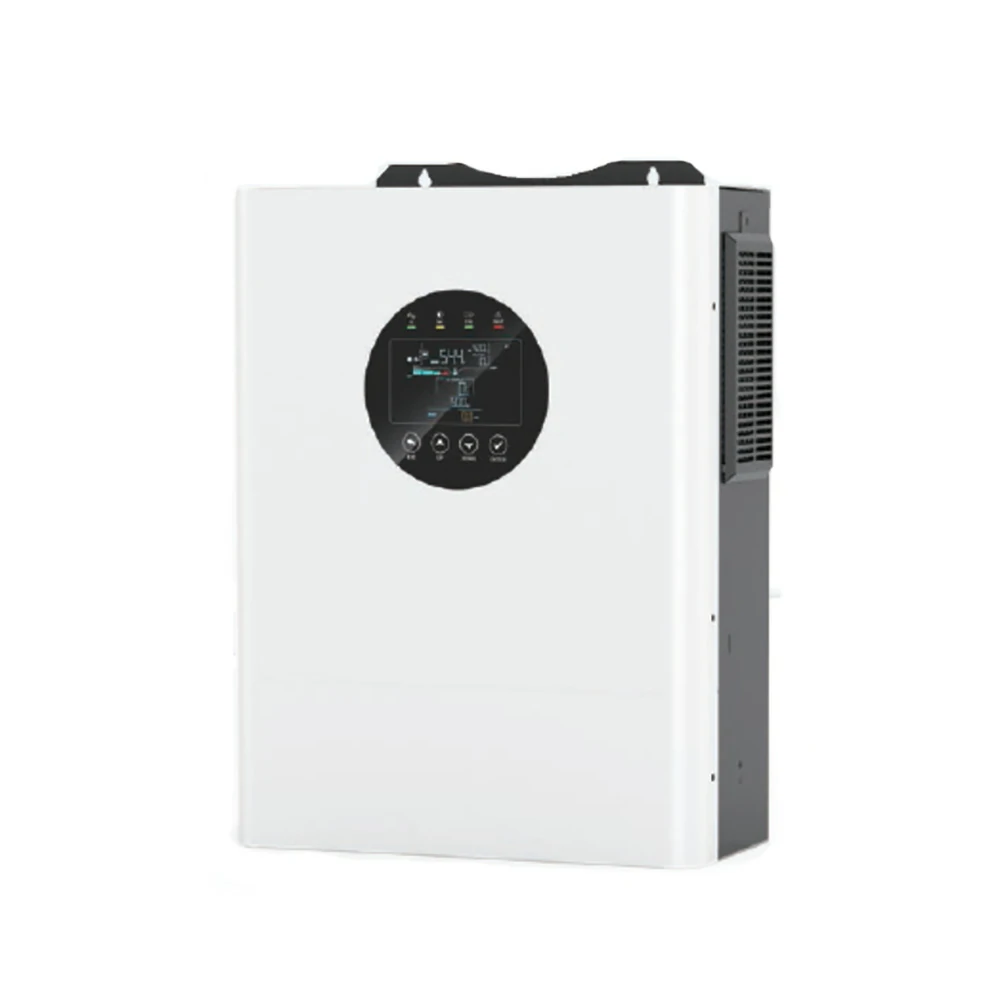

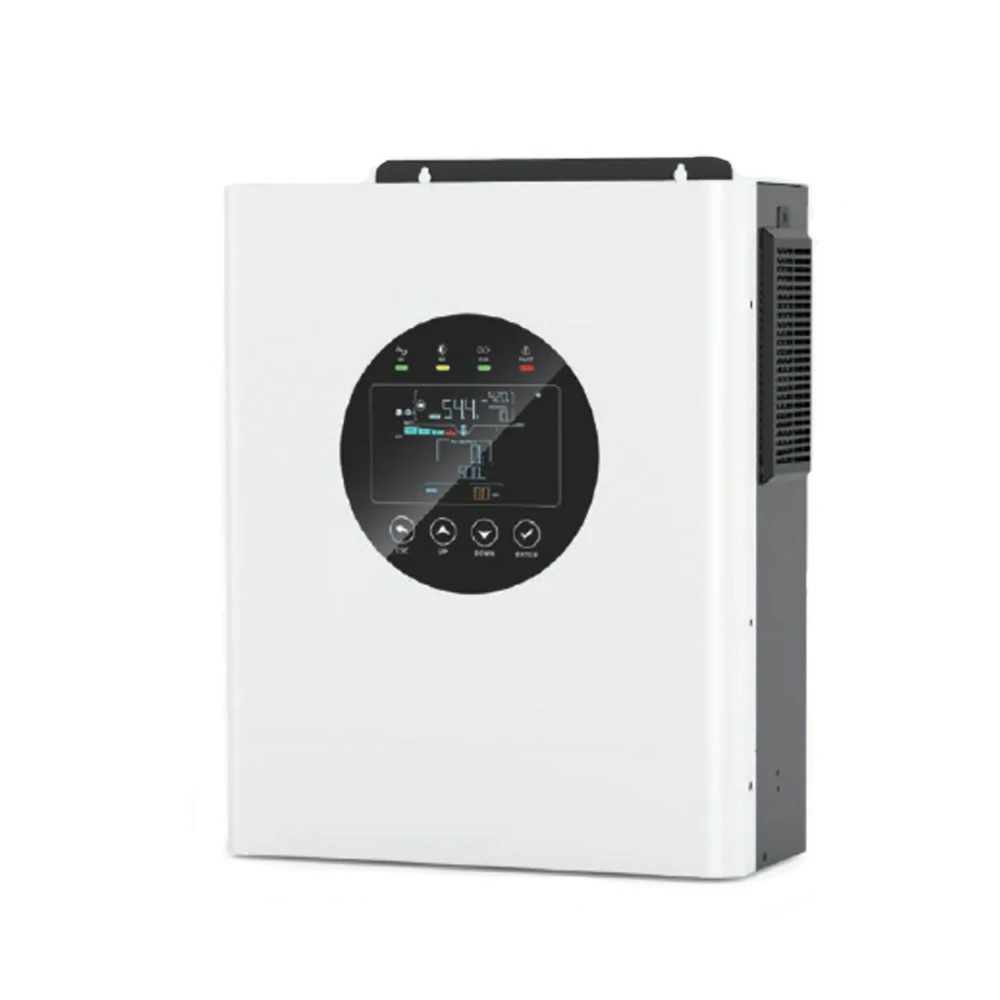

Single phase off grid hybrid solar inverter

Description

Single phase off grid hybrid solar inverter

Model:ESS-SI001-INV

Pure sine wave solar inverter
WiFi and GPRS for IOS and Android
Built in 80A MPPT solar charger
High PV input voltage range (30-400VDC)
Built in dust-proof kit, suitable for harsh environments
Intelligent battery charging design, optimizing battery life
Meet diverse customization needs
Compatible with lithium batteries
Solar energy is first provided directly to the load

Product Version:

A.Model:ESS-SI001-INV1200-12

PVInput
Max. Input Power (kW)：0.8
Max. Input Current (A)：18
PV Input Short-circuit Current (A);20
Open Circuit Voltage (VDC):115
Start-up Voltage (VDC):20
MPPT Voltage (VDC):17~115
AC Input
Rated Input Voltage (VAC):208/220/230/240;L+N+PE
Voltage Range (VAC):90-280士3V(Normal) /170-280士3V(UPS)
Frequency (Hz):50/60
Max Bypass Input Current (A):10
（Parallel Quantity):NA
AC Output
Rated Capacity (kW):12
Output Power (battery mode) (kw):12
Voltage (VAC):208/220/230/240
Frequency (Hz):50/60Hz士0.1%
Output Wave Form:Pure Sine Wave
Battery Mode Overload Capacity:60s @ 102%-120%Load;10s @120%-200% Load
Battery Mode Max. Efficiency:90%@12VDC
Switch Time (ms):<10

Battery
Nominal Voltage(VDC):12
Max. AC Charge Current (A):50
Max. PV Charge Current (A):50
Max. Charge Current (PV + AC) (A):100
Max.Discharge Current (A):110
Operating Voltage Range (VDC):10.8Vdc ~14.6Vdc
General Data
Reveal:LCD
Communication:RS485 /CAN /USB
Monitoring:WIFI/4G (Optional)
Ingress Protection:IP21
Operating Temperature:-10°C~55°C
Relative Humidity:5% ~95% (Non-condensing)
Max. Operating Altitude:4000m (Derating above2000m)
DIMENSION
NW (Kg):3.8
GW (Kg):4.5
Products Size(w*H*D)mm:L330xW226xH110
Package Size(W*H*D)mm:L410xW306xH160
Quantity 20GP :1092
Quantity 40GP :2352
Quantity 40HQ :2940



B.Model:ESS-SI001-INV2000-12

PVInput
Max. Input Power (kW)：3
Max. Input Current (A)：18
PV Input Short-circuit Current (A);22
Open Circuit Voltage (VDC):450
Start-up Voltage (VDC):40
MPPT Voltage (VDC):30~400
AC Input
Rated Input Voltage (VAC):208/220/230/240;L+N+PE
Voltage Range (VAC):90-280士3V(Normal) /170-280士3V(UPS)
Frequency (Hz):50/60
Max Bypass Input Current (A):17
（Parallel Quantity):NA
AC Output
Rated Capacity (kW):12
Output Power (battery mode) (kw):12
Voltage (VAC):208/220/230/240
Frequency (Hz):50/60Hz士0.1%
Output Wave Form: Pure Sine Wave
Battery Mode Overload Capacity:60s @ 102%-120%Load;10s @120%-200% Load
Battery Mode Max. Efficiency:90%@12VDC
Switch Time (ms):<10

Battery
Nominal Voltage(VDC):12
Max. AC Charge Current (A):100
Max. PV Charge Current (A):100
Max. Charge Current (PV + AC) (A):100
Max.Discharge Current (A):160
Operating Voltage Range (VDC):10.8Vdc ~14.6Vdc
General Data
Reveal:LCD
Communication:RS485 /CAN /USB
Monitoring:WIFI/4G (Optional)
Ingress Protection:IP21
Operating Temperature:-10°C~55°C
Relative Humidity:5% ~95% (Non-condensing)
Max. Operating Altitude:4000m (Derating above2000m)
DIMENSION
NW (Kg):4.8
GW (Kg):5.7
Products Size(w*H*D)mm:L330xW260xH120
Package Size(W*H*D)mm:L406xW346xH196
Quantity 20GP :750
Quantity 40GP :1650
Quantity 40HQ :1980



C.Model:ESS-SI001-INV3600-24

PVInput
Max. Input Power (kW)：5
Max. Input Current (A)：18
PV Input Short-circuit Current (A);22
Open Circuit Voltage (VDC):500
Start-up Voltage (VDC):60
MPPT Voltage (VDC):40~450
AC Input
Rated Input Voltage (VAC):208/220/230/240;L+N+PE
Voltage Range (VAC):90-280士3V(Normal) /170-280士3V(UPS)
Frequency (Hz):50/60
Max Bypass Input Current (A):20
（Parallel Quantity):NA
AC Output
Rated Capacity (kW):3.6
Output Power (battery mode) (kw):3.3
Voltage (VAC):208/220/230/240
Frequency (Hz):50/60Hz士0.1%
Output Wave Form:Pure Sine Wave
Battery Mode Overload Capacity:60s @ 102%-120%Load;10s @120%-200% Load
Battery Mode Max. Efficiency:90%@12VDC
Switch Time (ms):<10

Battery
Nominal Voltage(VDC):24
Max. AC Charge Current (A):100
Max. PV Charge Current (A):100
Max. Charge Current (PV + AC) (A):100
Max.Discharge Current (A):160
Operating Voltage Range (VDC):21.6Vdc ~29.2Vdc
General Data
Reveal:LCD
Communication:RS485 /CAN /USB
Monitoring:WIFI/4G (Optional)
Ingress Protection:IP21
Operating Temperature:-10°C~55°C
Relative Humidity:5% ~95% (Non-condensing)
Max. Operating Altitude:4000m (Derating above2000m)
DIMENSION
NW (Kg):6.1
GW (Kg):7.2
Products Size(w*H*D)mm:L420xW289xH100
Package Size(W*H*D)mm:L500xW369xH170
Quantity 20GP :560
Quantity 40GP :1240
Quantity 40HQ :1612



D.Model:ESS-SI001-INV5000-24

PVInput
Max. Input Power (kW)：9
Max. Input Current (A)：27
PV Input Short-circuit Current (A);33
Open Circuit Voltage (VDC):500
Start-up Voltage (VDC):80
MPPT Voltage (VDC):60~450
AC Input
Rated Input Voltage (VAC):208/220/230/240;L+N+PE
Voltage Range (VAC):90-280士3V(Normal) /170-280士3V(UPS)
Frequency (Hz):50/60
Max Bypass Input Current (A):40
（Parallel Quantity):9
AC Output
Rated Capacity (kW):5
Output Power (battery mode) (kw):4
Voltage (VAC):208/220/230/240
Frequency (Hz):50/60Hz士0.1%
Output Wave Form:Pure Sine Wave
Battery Mode Overload Capacity:60s @ 102%-120%Load;10s @120%-200% Load
Battery Mode Max. Efficiency:90%@12VDC
Switch Time (ms):<10

Battery
Nominal Voltage(VDC):24
Max. AC Charge Current (A):160
Max. PV Charge Current (A):160
Max. Charge Current (PV + AC) (A):160
Max.Discharge Current (A):190
Operating Voltage Range (VDC):21.6Vdc ~29.2Vdc
General Data
Reveal:LCD
Communication:RS485 /CAN /USB
Monitoring:WIFI/4G (Optional)
Ingress Protection:IP21
Operating Temperature:-10°C~55°C
Relative Humidity:5% ~95% (Non-condensing)
Max. Operating Altitude:4000m (Derating above2000m)
DIMENSION
NW (Kg):7.8
GW (Kg):8.9
Products Size(w*H*D)mm:L410xW331xH135
Package Size(W*H*D)mm:L472xW405xH210
Quantity 20GP :440
Quantity 40GP :960
Quantity 40HQ :1320



E.Model:ESS-SI001-INV6500-48

PVInput
Max. Input Power (kW)：9
Max. Input Current (A)：27
PV Input Short-circuit Current (A);33
Open Circuit Voltage (VDC):500
Start-up Voltage (VDC):80
MPPT Voltage (VDC):60~450
AC Input
Rated Input Voltage (VAC):208/220/230/240;L+N+PE
Voltage Range (VAC):90-280士3V(Normal) /170-280士3V(UPS)
Frequency (Hz):50/60
Max Bypass Input Current (A):40
（Parallel Quantity):9
AC Output
Rated Capacity (kW):6.5
Output Power (battery mode) (kw):6.5
Voltage (VAC):208/220/230/240
Frequency (Hz):50/60Hz士0.1%
Output Wave Form: Pure Sine Wave
Battery Mode Overload Capacity:60s @ 102%-120%Load;10s @120%-200% Load
Battery Mode Max. Efficiency:90%@12VDC
Switch Time (ms):<10

Battery
Nominal Voltage(VDC):48
Max. AC Charge Current (A):120
Max. PV Charge Current (A):120
Max. Charge Current (PV + AC) (A):120
Max.Discharge Current (A):160
Operating Voltage Range (VDC):43.2Vdc ~58.4Vdc
General Data
Reveal:LCD
Communication:RS485 /CAN /USB
Monitoring:WIFI/4G (Optional)
Ingress Protection:IP21
Operating Temperature:-10°C~55°C
Relative Humidity:5% ~95% (Non-condensing)
Max. Operating Altitude:4000m (Derating above2000m)
DIMENSION
NW (Kg):8.3
GW (Kg):9.5
Products Size(w*H*D)mm:L410xW331xH135
Package Size(W*H*D)mm:L472xW405xH210
Quantity 20GP :440
Quantity 40GP :960
Quantity 40HQ :1320



F.Model:ESS-SI001-INV12000-48

PVInput
Max. Input Power (kW)：1MPPT9KW;2MPPT:7.5KW+7.5KW

Max. Input Current (A)：1MPPT:27A;2MPPT:22.5A+22.5A
PV Input Short-circuit Current (A);33
Open Circuit Voltage (VDC):500
Start-up Voltage (VDC):80
MPPT Voltage (VDC):60~450
AC Input
Rated Input Voltage (VAC):208/220/230/240;L+N+PE
Voltage Range (VAC):90-280士3V(Normal) /170-280士3V(UPS)
Frequency (Hz):50/60
Max Bypass Input Current (A):40
（Parallel Quantity):9
AC Output
Rated Capacity (kW):12
Output Power (battery mode) (kw):10.5
Voltage (VAC):208/220/230/240
Frequency (Hz):50/60Hz士0.1%
Output Wave Form: Pure Sine Wave
Battery Mode Overload Capacity:60s @ 102%-120%Load;10s @120%-200% Load
Battery Mode Max. Efficiency:90%@12VDC
Switch Time (ms):<10

Battery
Nominal Voltage(VDC):48
Max. AC Charge Current (A):160
Max. PV Charge Current (A):160
Max. Charge Current (PV + AC) (A):160
Max.Discharge Current (A):220
Operating Voltage Range (VDC):43.2Vdc ~58.4Vdc
General Data
Reveal:LCD
Communication:RS485 /CAN /USB
Monitoring:WIFI/4G (Optional)
Ingress Protection:IP21
Operating Temperature:-10°C~55°C
Relative Humidity:5% ~95% (Non-condensing)
Max. Operating Altitude:4000m (Derating above2000m)
DIMENSION
NW (Kg):14.2
GW (Kg):15.7
Products Size(w*H*D)mm:L495xW425xH132
Package Size(W*H*D)mm:L551xW491xH191
Quantity 20GP :360
Quantity 40GP :750
Quantity 40HQ :1000
