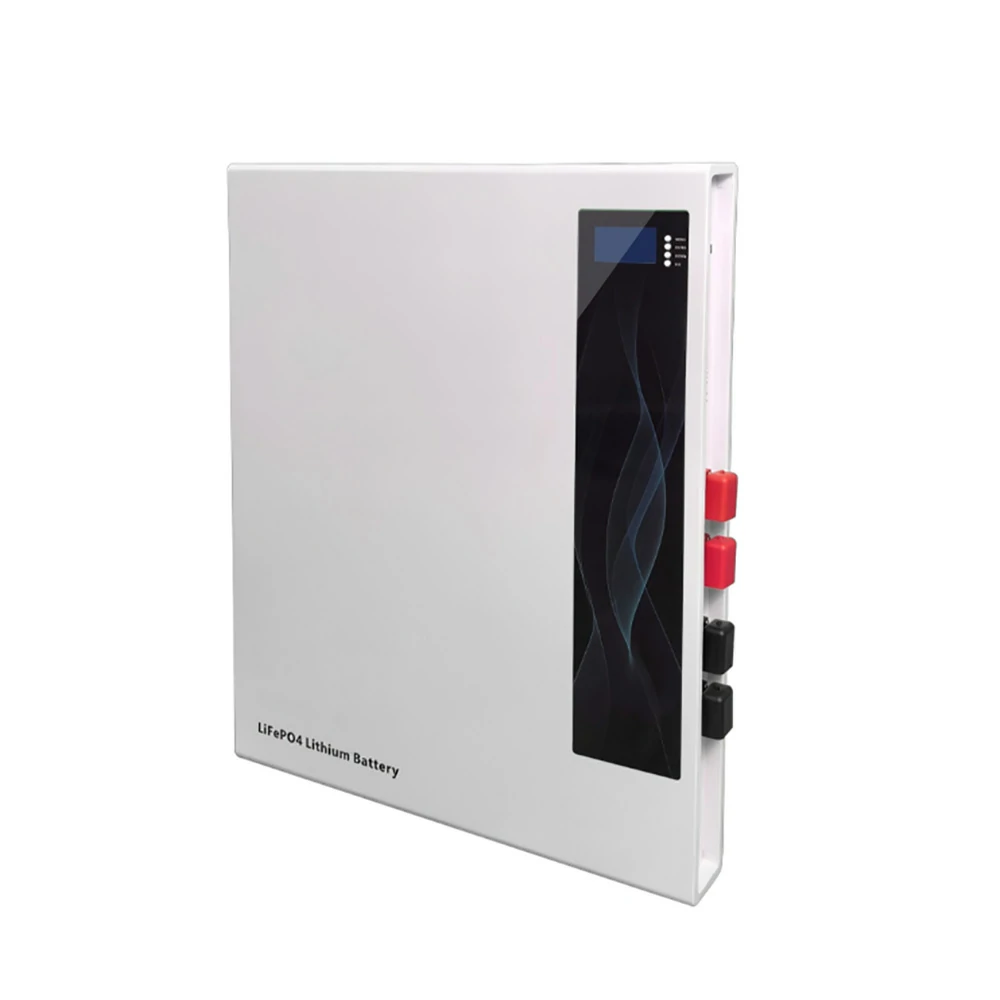

Ultra thin wall mounted lithium battery household energy storage battery system
Ultra thin wall mounted lithium battery household energy storage battery system
Model:HESS-HA002
The charging/discharging cycle life exceeds 5000 times.
It has overcharge and over discharge protection functions.
It has overcurrent and short-circuit protection functions.
It has over temperature protection function.
Suitable for off grid solar photovoltaic power generation systems.
Built in intelligent battery management system ensures that the battery is always in optimal working condition.
The automatic output will be cut off after 30 days, without charging or discharging, to ensure that the output can also be cut off manually.
The intelligent BMS is equipped with multiple communication protocols.
5-year warranty. 10 years of service life, lithium iron phosphate battery, more stable and safe.
Description
Ultra thin wall mounted lithium battery household energy storage battery system
Model:HESS-HA002
The charging/discharging cycle life exceeds 5000 times.
It has overcharge and over discharge protection functions.
It has overcurrent and short-circuit protection functions.
It has over temperature protection function.
Suitable for off grid solar photovoltaic power generation systems.
Built in intelligent battery management system ensures that the battery is always in optimal working condition.
The automatic output will be cut off after 30 days, without charging or discharging, to ensure that the output can also be cut off manually.
The intelligent BMS is equipped with multiple communication protocols.
5-year warranty. 10 years of service life, lithium iron phosphate battery, more stable and safe.
Product Version:
1.HA002-25.6V100AH
Battery:LiFePO4
Normal battery voltage (Vdc):25.6V
Normal capacity (25 ℃ 0.2C) (Ah):100AH
Normal battery capacity (25 ℃ 0.2C) (Ah):2560WH
Fast charging voltage (Vdc):28V
Operating voltage range (Vdc):20~ 29.2V
Maximum continuous discharge current (A):100A
Maximum pulse discharge current (A):150A 1 Sec.
Maximum continuous charging current (A):50A
Terminal:M6
Storage temperature:0℃~30℃
IP Rate:IP20
Storage duration:6 months at 25 ℃
Safety Standards:UN38.3,IEC62619,CE
Communication:CSN/RS485/
Protection:Overcharge protection, over discharge protection, overvoltage protection, short circuit protection, over temperature protection
Size:460x360x139mm
Pack:540x440x219mm
Weight:23.2Kg/25.0Kg
2.HA002-51.2V200AH
Battery:LiFePO4
Normal battery voltage (Vdc):51.2V
Normal capacity (25 ℃ 0.2C) (Ah):50AH
Normal battery capacity (25 ℃ 0.2C) (Ah):2560WH
Fast charging voltage (Vdc):56V
Operating voltage range (Vdc):40~ 58.4V
Maximum continuous discharge current (A):25A
Maximum pulse discharge current (A):75A 1 Sec.
Maximum continuous charging current (A):50A
Terminal:M8
Storage temperature:0℃~30℃
IP Rate:IP20
Storage duration:6 months at 25 ℃
Safety Standards:UN38.3,IEC62619,CE
Communication:CAN/RS485/RS232 (optional)
Protection:Overcharge protection, over discharge protection, overvoltage protection, short circuit protection, over temperature protection
Size:460x360x139mm
Pack:540x440x219mm
Weight:23.2Kg/25Kg
