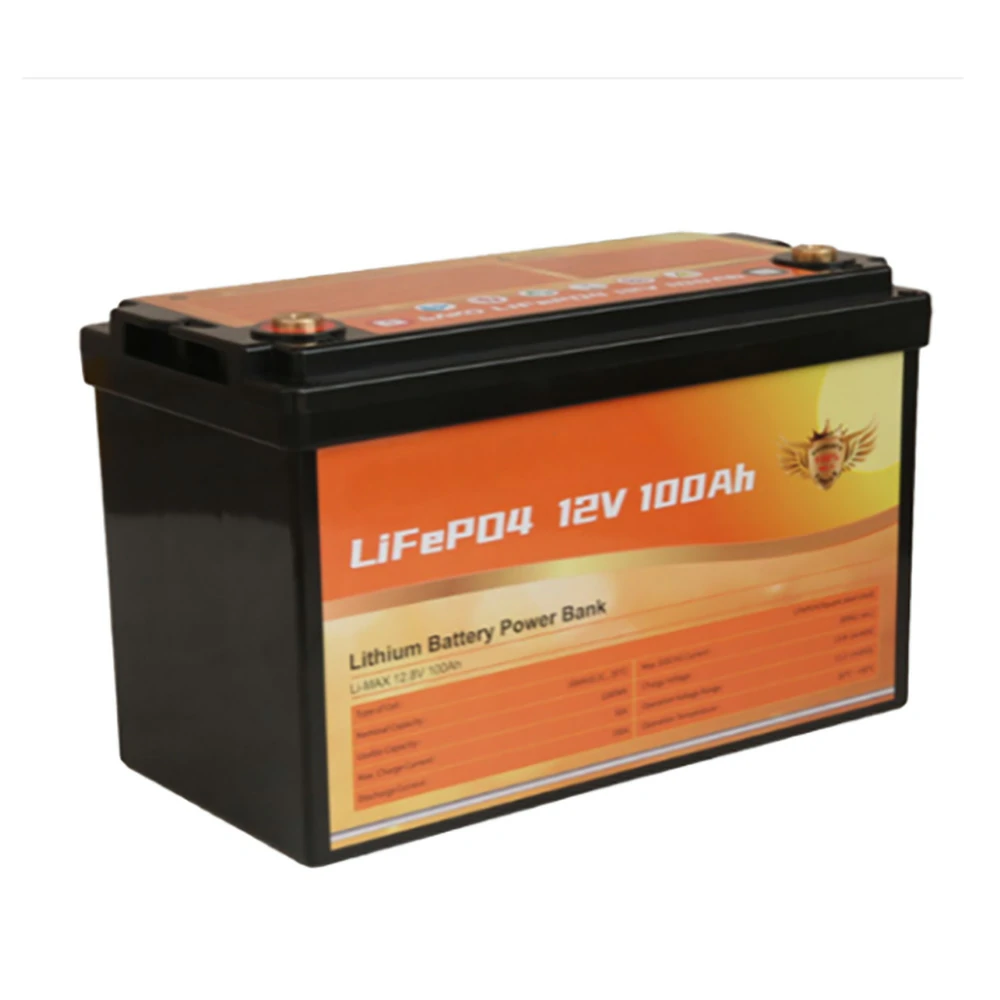

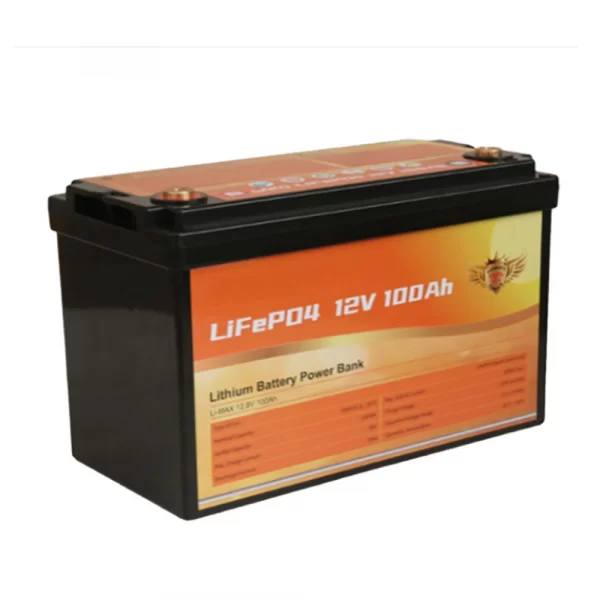

Lithium substituted lead battery household battery system

Description

Lithium substituted lead battery household battery system

Model:HESS-D001

12V24V LiFePO4 package, safe and reliable
Adopting an intelligent BMS system for comprehensive protection.
A-class batteries are of sturdy and reliable quality.
High density, small volume, and light weight.
The maximum discharge current can reach 200A, suitable for inverters or UPS systems
Plastic casing, ideal choice for replacing lead-acid batteries
Long life design, battery cycle time can reach 3000 times, 5-year+life design.
Support series or parallel connection
Bluetooth monitor is optional.



Storage temperature: 0 ℃~30 ℃
Storage duration 6 months at 25 ℃
Safety standard UN38.3, MSDS, CE
IP rating IP65
protect
Protection against overcharging, overdischarging, overcurrent, short circuit, and overheating
environment
Working temperature -10 ℃~+50 ℃
Humidity 0~95% (no condensation)
Sea level (m) ≤ 1500

Product Version:

1.HD001-12.8V50AH

Battery type:LiFePO4

Normal battery voltage (Vdc):12.8V

Normal battery capacity (25 ℃ 0.2C) (Ah):640WH

Operating voltage range (Vdc):11.2~ 14.6V

Folding charging voltage (Vdc):14V

Maximum continuous discharge current (A):50A

Maximum pulse discharge current (A):100A 1 Sec.

Maximum continuous charging current (A):25A

Terminal:M6



2.HD001-12.8V100AH

Battery type:LiFePO4

Normal battery voltage (Vdc):12.8V

Normal battery capacity (25 ℃ 0.2C) (Ah):1280WH

Operating voltage range (Vdc):11.2~ 14.6V

Folding charging voltage (Vdc):14V

Maximum continuous discharge current (A):100A

Maximum pulse discharge current (A):200A 1 Sec.

Maximum continuous charging current (A):50A

Terminal:M8



3.HD001-12.8V150AH

Battery type:LiFePO4

Normal battery voltage (Vdc):12.8V

Normal battery capacity (25 ℃ 0.2C) (Ah):1920WH

Operating voltage range (Vdc):11.2~ 14.6V

Folding charging voltage (Vdc):14V

Maximum continuous discharge current (A):100A

Maximum pulse discharge current (A):200A 1 Sec.

Maximum continuous charging current (A):100A

Terminal:M8



4.HD001-12.8V50AH

Battery type:LiFePO4

Normal battery voltage (Vdc):12.8V

Normal battery capacity (25 ℃ 0.2C) (Ah):2560WH

Operating voltage range (Vdc):11.2~ 14.6V

Folding charging voltage (Vdc):14V

Maximum continuous discharge current (A):100A

Maximum pulse discharge current (A):300A 1 Sec.

Maximum continuous charging current (A):200A

Terminal:M8



5.HD001-25.6V100AH

Battery type:LiFePO4

Normal battery voltage (Vdc):25.6V

Normal battery capacity (25 ℃ 0.2C) (Ah):2560WH

Operating voltage range (Vdc):22.4~ 29.2V

Folding charging voltage (Vdc):28V

Maximum continuous discharge current (A):100A

Maximum pulse discharge current (A):200A 1 Sec.

Maximum continuous charging current (A):50A

Terminal:M8



6.HD001-25.6V150AH

Battery type:LiFePO4

Normal battery voltage (Vdc):25.6V

Normal battery capacity (25 ℃ 0.2C) (Ah):3840WH

Operating voltage range (Vdc):22.4~ 29.2V

Folding charging voltage (Vdc):28V

Maximum continuous discharge current (A):150A

Maximum pulse discharge current (A):200A 1 Sec.

Maximum continuous charging current (A):75A

Terminal:M8
