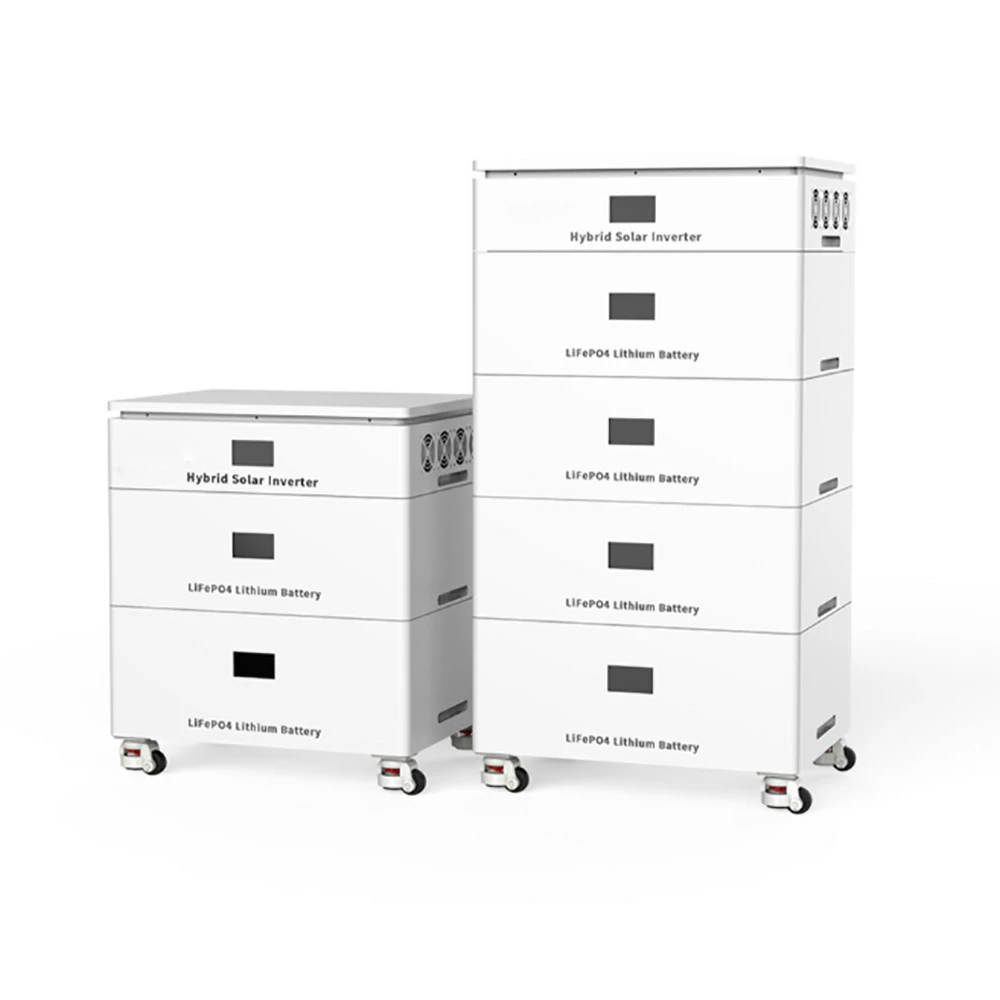

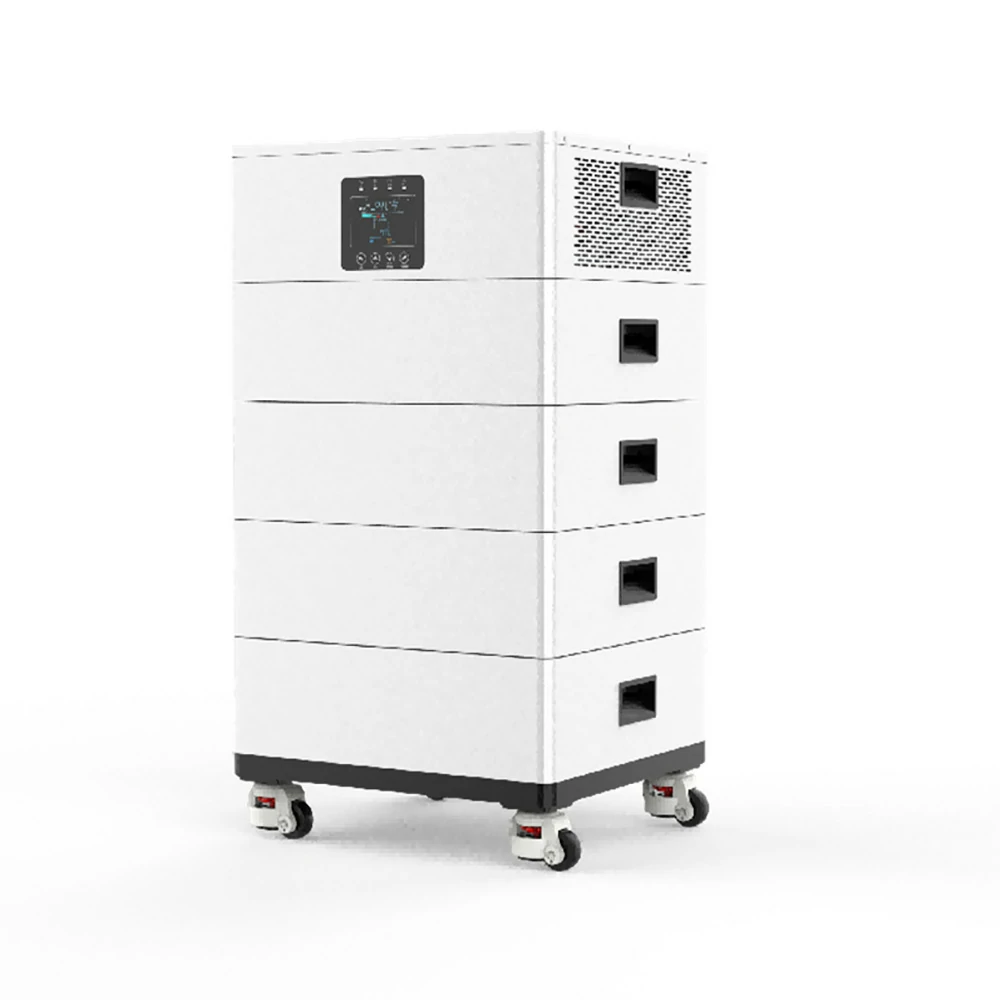

Stackable inverter energy storage integrated machine

Description

Stackable inverter energy storage integrated machine

Model:ESS-AIO007

Inverter + BMS + Battery,integrated design
Built-in solar inverter
Support solar charging
Feed-in to Grid
WiFi Monitoring
Pure Sine Wave
Stand-alone Version/ Parallel Version Optional

Product Version:

PVInput
Max.Input Capacity (W)：1MPPT:9KW;2MPPT:7.5KW+7.5KW
Max.Input Current (A)：1MPPT:27A;2MPPT:22.5A+22.5A
PVInput Short-circuit Current (A)：33
Open Circuit Voltage (VDC)：500
start-up Voltage (VDC)：80
MPPTVoltage（VDC)：60~450
ACInput
Rated Input Voltage (VAC)：208/220/230/240;L+N+PE
Voltage Range (VAC)：90~280士3 (normal mode);170~280士3 (UPS mode)
Frequency (Hz)：50/60(Auto Adaptive)
Max.BypassInput Current：70
AC Output
Rated Capacity (kVA)：12
Voltage (VAC)：208 /220/230/240
Frequency (Hz)：50/60Hz士0.1%
Wave Form： Pure Sine Wave
Battery Mode Overload Capacity：1min@102%~125%Load;10s@125%Load~200%Load
Battery Mode Max.Ffficiency：93%@48VDC
Switch Time (ms)：<10

General Data
reveal：LCD
communication：USB
Monitoring：WiFi
Ingress Protection：IP20
Operating Temperature：Charge0°C~+55°℃;Discharge-20°C~+55°C
Relative Humidity：5%~95% (Non-condensing)
Max.OperatingAltitude：4000m (Derating above 2000m)



Model:ESS-AIO007-12KW16KWH

Battery
Nominal Energy:16kwh
Nominal Voltage:51.2Vdc
Usable Energy(90%DOD):14.4kwh

Max ACChargeCurrent(A)：160
MaxPVChargeCurrent (A)：160
Max.Charge Current (PV+AC) (A)：160
Max.DischargeCurent (A)：220
OperatingVoltage Range：43.2Vdc~58.4Vdc

Dimension
LxWxH(products size):550x245x1230mm
LxWxH(package size):630x420x1314mm
Weight(NW Kg):151
Weight(GW Kg):172
Quantity 20GP :  60
Quantity 40GP:   130
Quantity 40HQ:  156



Model:ESS-AIO007-12KW21KWH

Battery
Nominal Energy:21kwh
Nominal Voltage:51.2Vdc
Usable Energy(90%DOD):18.9kwh

Max ACChargeCurrent(A)：160
MaxPVChargeCurrent (A)：160
Max.Charge Current (PV+AC) (A)：160
Max.DischargeCurent (A)：220
OperatingVoltage Range：43.2Vdc~58.4Vdc

Dimension
LxWxH(products size):550x245x1400mm
LxWxH(package size):630x450x1480mm
Weight(NW Kg):186
Weight(GW Kg):215
Quantity 20GP :  55
Quantity 40GP:   120
Quantity 40HQ:  120



Model:ESS-AIO007-12KW32KWH

Battery
Nominal Energy:32kwh
Nominal Voltage:51.2Vdc
Usable Energy(90%DOD):28.8kwh

Max ACChargeCurrent(A)：160
MaxPVChargeCurrent (A)：160
Max.Charge Current (PV+AC) (A)：160
Max.DischargeCurent (A)：220
OperatingVoltage Range：43.2Vdc~58.4Vdc

Dimension
LxWxH(products size):595x298x1550mm
LxWxH(package size):755x480x1630mm
Weight(NW Kg):248
Weight(GW Kg):302
Quantity 20GP :  36
Quantity 40GP:   84
Quantity 40HQ:  105
