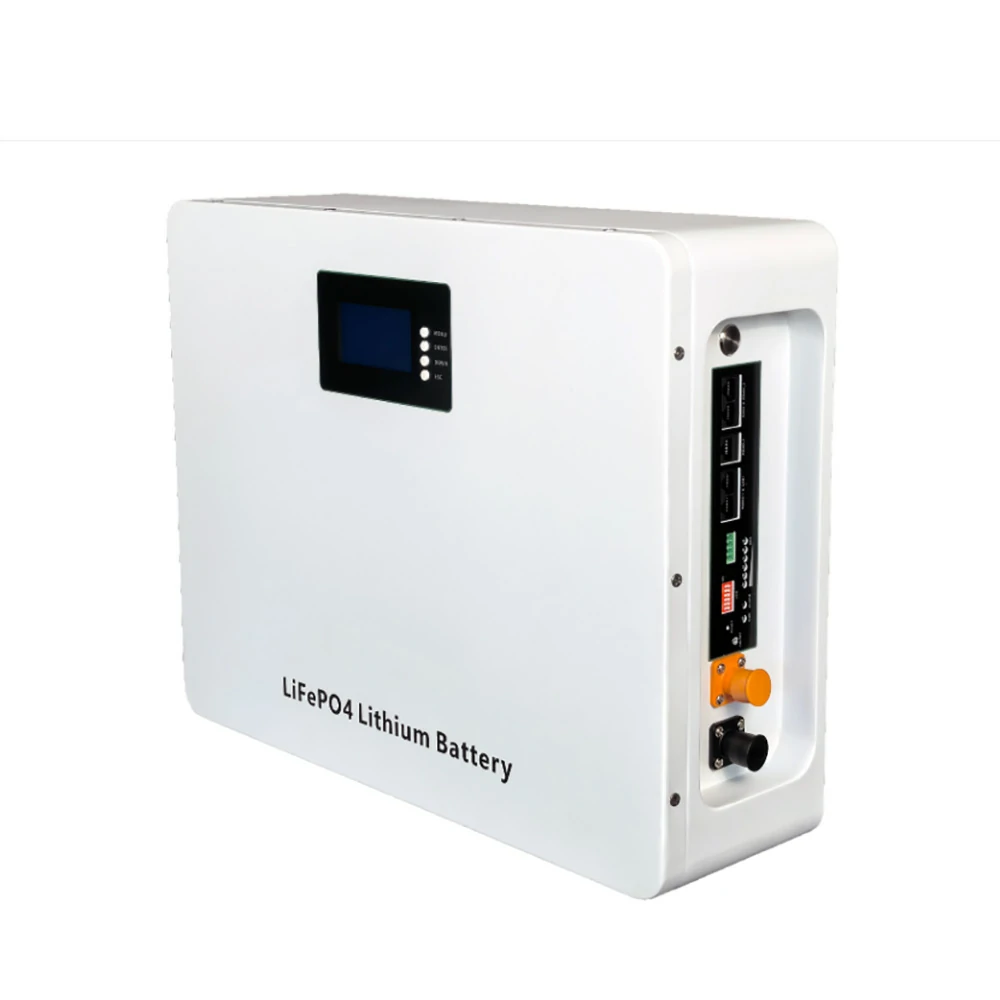

Wall mounted lithium battery household energy storage battery system

Description

Wall mounted lithium battery household energy storage battery system

Model:HESS-HA001

24V/48V lithium iron phosphate battery, wall mounted design
Adopting an intelligent BMS system for comprehensive protection
Big brand battery cells, reliable quality
High density, small volume, light weight
The maximum discharge current can reach 200A, suitable for inverters or solar energy systems
LCD display screen, optional communication port (CAN/RS485/RS232)
Long life design, battery cycle time up to 4000 times, 3-year warranty, designed for a lifespan of over 10 years
Comprehensive protection and unmanned operation

Product Version:

1.HA001-25.6V100AH

Battery:LiFePO4

Normal battery voltage (Vdc):25.6V

Normal capacity (25 ℃ 0.2C) (Ah):100AH

Normal battery capacity (25 ℃ 0.2C) (Ah):2560WH

Fast charging voltage (Vdc):28V

Operating voltage range (Vdc):22.4~ 29.2V

Maximum continuous discharge current (A):100A

Maximum pulse discharge current (A):200A 30 Sec.

Maximum continuous charging current (A):50A

Terminal:M8

Storage temperature:0℃~30℃

IP Rate:IP20

Storage duration:6 months at 25 ℃

Safety Standards:UN38.3,IEC62619,CE

Communication:CAN/RS485/RS232 (optional)

Protection:Overcharge protection, over discharge protection, overvoltage protection, short circuit protection, over temperature protection

Size:414*372*227mm

Pack:496*469*275mm

Weight:23.2Kg/25.0Kg



2.HA001-25.6V200AH

Battery:LiFePO4

Normal battery voltage (Vdc):25.6V

Normal capacity (25 ℃ 0.2C) (Ah):200AH

Normal battery capacity (25 ℃ 0.2C) (Ah):5120WH

Fast charging voltage (Vdc):28V

Operating voltage range (Vdc):22.4~ 29.2V

Maximum continuous discharge current (A):150A

Maximum pulse discharge current (A):200A 30 Sec.

Maximum continuous charging current (A):100A

Terminal:M8

Storage temperature:0℃~30℃

IP Rate:IP20

Storage duration:6 months at 25 ℃

Safety Standards:UN38.3,IEC62619,CE

Communication:CAN/RS485/RS232 (optional)

Protection:Overcharge protection, over discharge protection, overvoltage protection, short circuit protection, over temperature protection

Size:584*580*207mm

Pack:668*666*255mm

Weight:72.6Kg/76.7Kg



3.HA001-51.2V100AH

Battery:LiFePO4

Normal battery voltage (Vdc):51.2V

Normal capacity (25 ℃ 0.2C) (Ah):100AH

Normal battery capacity (25 ℃ 0.2C) (Ah):5120WH

Fast charging voltage (Vdc):56V

Operating voltage range (Vdc):44.8~ 58.4V

Maximum continuous discharge current (A):100A

Maximum pulse discharge current (A):200A 30 Sec.

Maximum continuous charging current (A):50A

Terminal:M8

Storage temperature:0℃~30℃

IP Rate:IP20

Storage duration:6 months at 25 ℃

Safety Standards:UN38.3,IEC62619,CE

Communication:CAN/RS485/RS232 (optional)

Protection:Overcharge protection, over discharge protection, overvoltage protection, short circuit protection, over temperature protection

Size:550*375*227mm

Pack:612*422*259mm

Weight:39.7Kg/42.1Kg



4.HA001-51.2V200AH

Battery:LiFePO4

Normal battery voltage (Vdc):51.2V

Normal capacity (25 ℃ 0.2C) (Ah):200AH

Normal battery capacity (25 ℃ 0.2C) (Ah):10240WH

Fast charging voltage (Vdc):56V

Operating voltage range (Vdc):44.8~ 58.4V

Maximum continuous discharge current (A):150A

Maximum pulse discharge current (A):200A 30 Sec.

Maximum continuous charging current (A):100A

Terminal:M8

Storage temperature:0℃~30℃

IP Rate:IP20

Storage duration:6 months at 25 ℃

Safety Standards:UN38.3,IEC62619,CE

Communication:CAN/RS485/RS232 (optional)

Protection:Overcharge protection, over discharge protection, overvoltage protection, short circuit protection, over temperature protection

Size:606*380*265mm

Pack:672*452*302mm

Weight:76Kg/83Kg
