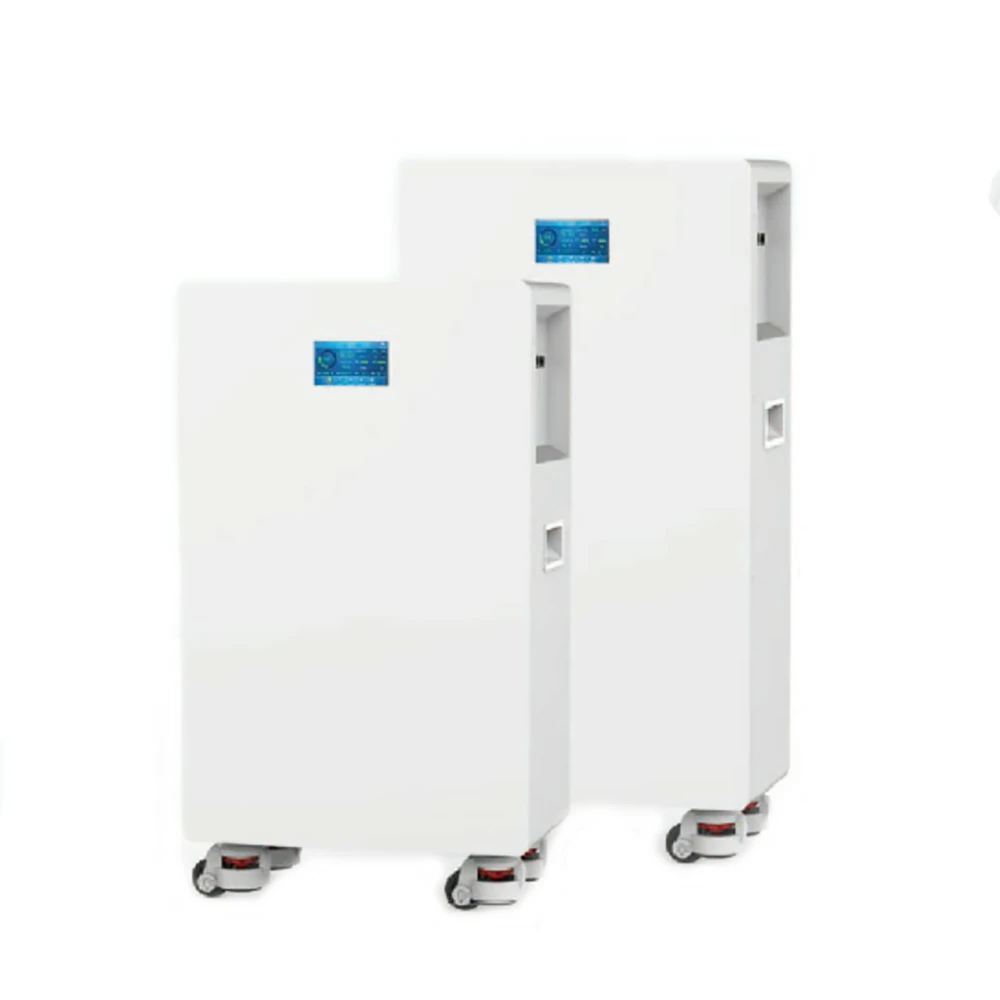

Vertical lithium battery energy storage household power system

Description

Vertical lithium battery energy storage household power system

Model:HESS-HH001

24V 48V LiFePO4 ， Floor standing design.
Adopting an intelligent BMS system for comprehensive protection.
A-class batteries are of sturdy and reliable quality.
Bluetooth communication is optional.
150A BMS， Suitable for inverters or solar energy systems.
Comprehensive protection and unmanned operation.
Long life design, battery cycle time up to 5000 times, 5-year warranty, 10+life design
LED and RGB light display battery capacity.

Product Version:

1.HH001-51.2V206AH

Battery:LiFePO4

Normal battery voltage (Vdc):51.2V

Normal capacity (25 ℃ 0.2C) (Ah):206AH

Normal battery capacity (25 ℃ 0.2C) (Ah):10547WH

Fast charging voltage (Vdc):56V

Operating voltage range (Vdc):40~ 58.4V

Maximum continuous discharge current (A):200A

Maximum pulse discharge current (A):300A 30 Sec.

Maximum continuous charging current (A):200A

Terminal:M8

Storage temperature:0℃~30℃

IP Rate:IP20

Storage duration:6 months at 25 ℃

Safety Standards:UN38.3,IEC62619,CE

Communication:RS485/Bluetooth (optional)

Protection:Overcharge protection, over discharge protection, overvoltage protection, short circuit protection, over temperature protection

Size:428*248*660mm

Pack:508*428*800mm

Weight:88Kg/101Kg

20GP:140PCS  40GP:248PCS  40HQ:248PCS



2.HH001-51.2V314AH

Battery:LiFePO4

Normal battery voltage (Vdc):51.2V

Normal capacity (25 ℃ 0.2C) (Ah):314AH

Normal battery capacity (25 ℃ 0.2C) (Ah):16076WH

Fast charging voltage (Vdc):56V

Operating voltage range (Vdc):40~ 58.4V

Maximum continuous discharge current (A):200A

Maximum pulse discharge current (A):300A 30 Sec.

Maximum continuous charging current (A):200A

Terminal:M8

Storage temperature:0℃~30℃

IP Rate:IP20

Storage duration:6 months at 25 ℃

Safety Standards:UN38.3,IEC62619,CE

Communication:RS485/Bluetooth (optional)

Protection:Overcharge protection, over discharge protection, overvoltage protection, short circuit protection, over temperature protection

Size:450*250*800mm

Pack:530*428*920mm

Weight:118Kg/134Kg

20GP:140PCS  40GP:192PCS  40HQ:192PCS



3.HH001-51.2V412AH

Battery:LiFePO4

Normal battery voltage (Vdc):51.2V

Normal capacity (25 ℃ 0.2C) (Ah):412AH

Normal battery capacity (25 ℃ 0.2C) (Ah):21094WH

Fast charging voltage (Vdc):56V

Operating voltage range (Vdc):40~ 58.4V

Maximum continuous discharge current (A):200A

Maximum pulse discharge current (A):300A 30 Sec.

Maximum continuous charging current (A):200A

Terminal:M8

Storage temperature:0℃~30℃

IP Rate:IP20

Storage duration:6 months at 25 ℃

Safety Standards:UN38.3,IEC62619,CE

Communication:RS485/Bluetooth (optional)

Protection:Overcharge protection, over discharge protection, overvoltage protection, short circuit protection, over temperature protection

Size:500*300*960mm

Pack:560*510*1090mm

Weight:160Kg/179Kg

20GP:80PCS  40GP:140PCS  40HQ:140PCS
