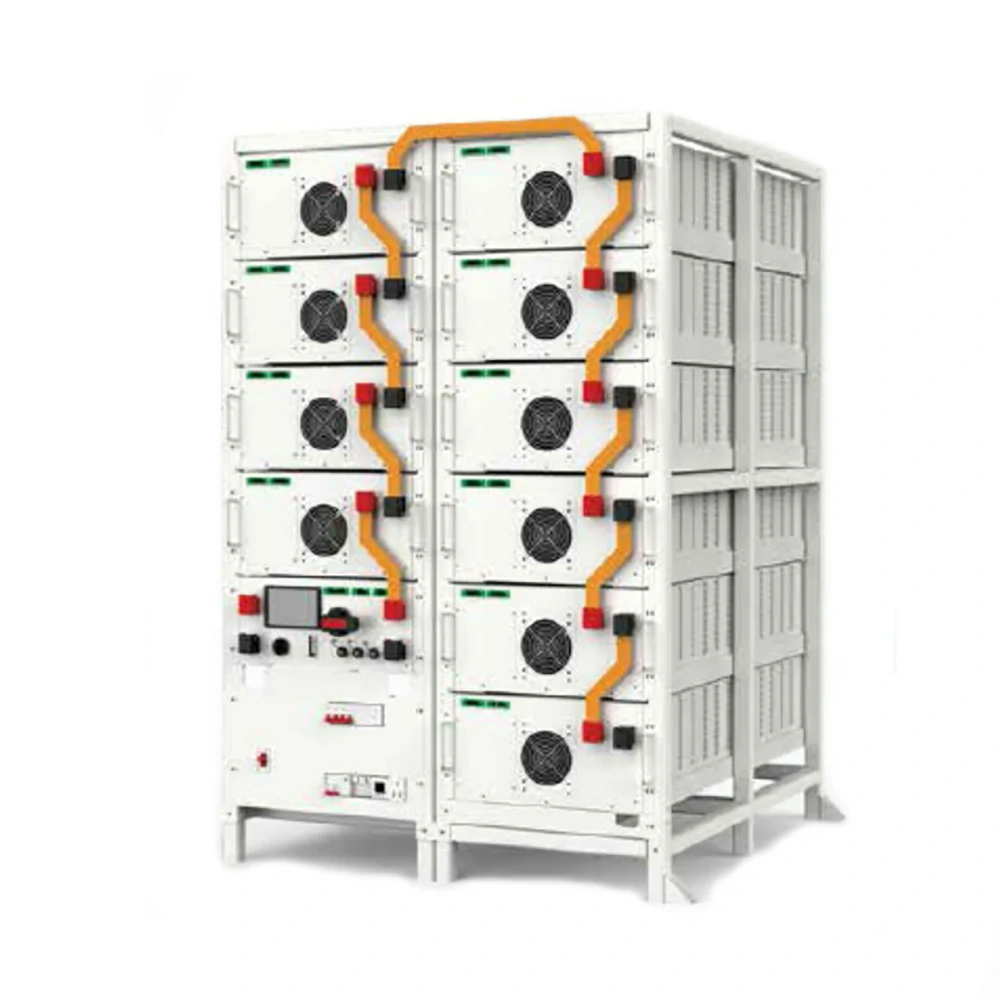

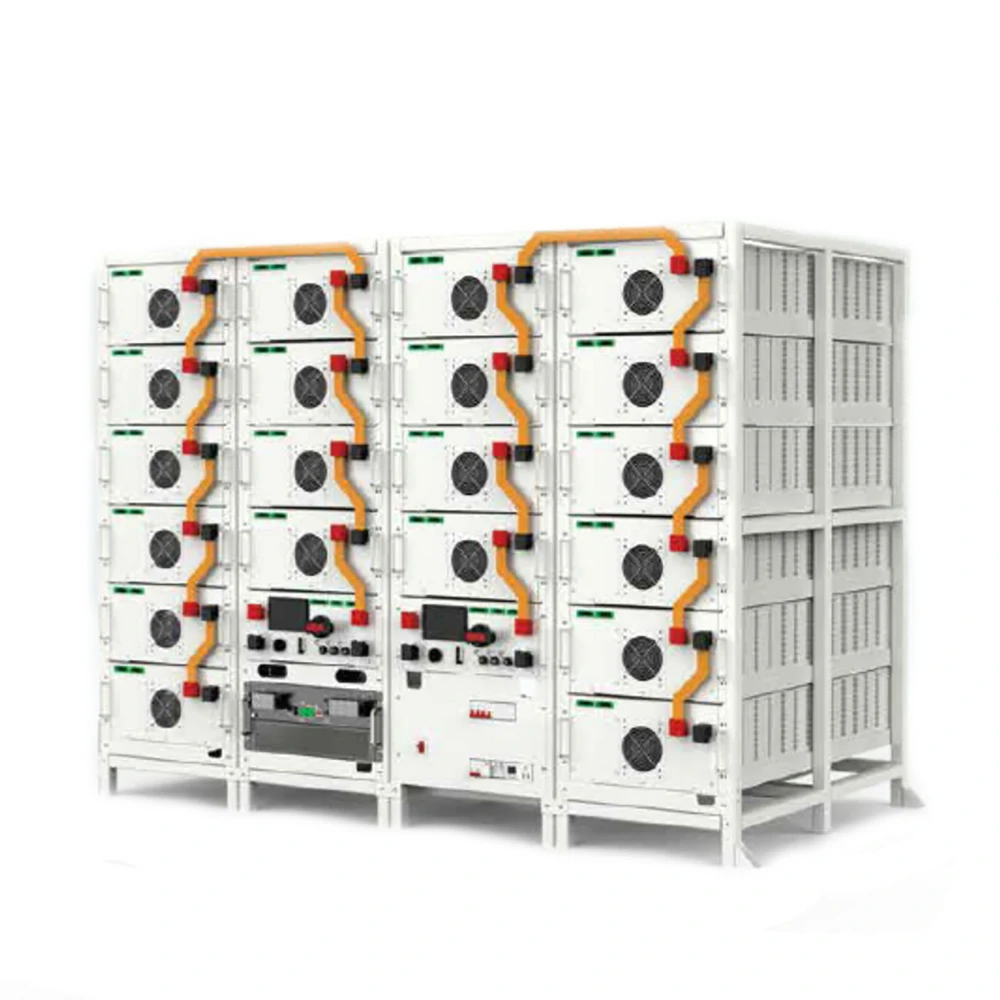

Rack mounted industrial and commercial energy storage battery system

Description

Rack mounted industrial and commercial energy storage battery system

Model:ESS-GS001-HVA

Lithium iron phosphate battery cell
LiFePO4 safety battery cell,Long cycle life, excellent thermal stability

Modular and flexible expansion
1P16S/1P24S/1P26S three configurations, combined with flexible expansion as needed

Wide pressure and efficient operation
307~845VDC wide voltage range,Efficient energy conversion with low loss

Five fold security protection
Overcharge/Over discharge/Over current/Short circuit/Over temperature, intelligent BMS protection for azimuth

Intelligent communication monitoring

CAN/RS485 dual communication interface
Real time data collection and remote operation and maintenance,



Adaptation to a wide temperature environment

Charge at 0-55 ° C and discharge at -20~55 ° C,Stable operation in both extreme cold and heat



High altitude adaptation

Maximum 4000m derating operation, automatic power regulation above 2000m



International Security Certification

UN38.3/MSDS certification,Reliable quality, globally recognized

Product Version:

Protection:Overcharge protection,POverdischarge protection,Overcurent protection,Shortcircuit protection,Overtemperature protection,
Air Cooling:Cooling Method
Communication:CAN/RS485
Storage Temperature:
Ambient Conditions:O°C-30°C
Storage Duration:6 months at 25°c
Safety Standard:UN38.3,MSDS
IP Rating:IP20
Working Temperature:Charge0°C~+55°℃;Discharge-20″C~+55²C
Humidity:0-959(no condensation)
Max. Operating Altitude:<4000m(used for downgrading over 2000m)
Module size(Excluding rack):
Product (Lw*H):1055*440*230mm
Package (LW*H):1135*520*420mm
N.W.:165kg
G.W.:185kg



A.Model:ESS-GS001-HVA216KWH

Case Design:Rack-mounted
Nominal Voltage:LiFePO4
Module Configuration:1P24S
Number Of Modules:9
Battery Type:691.2VDC
Single Cell Capacity:314Ah
Battery Level:217kW
Voltage Range:626.4-777.6VDC
Max. Charge Current:157A
Max.Discharge Current:157A

B.Model:ESS-GS001-HVA241KWH

Case Design:Rack-mounted
Nominal Voltage:LiFePO4
Module Configuration:1P24S
Number Of Modules:10
Battery Type:768VDC
Single Cell Capacity:314Ah
Battery Level:241kW
Voltage Range:696-864VDC
Max. Charge Current:157A
Max.Discharge Current:157A

C.Model:ESS-GS001-HVA265KWH

Case Design:Rack-mounted
Nominal Voltage:LiFePO4
Module Configuration:1P24S
Number Of Modules:11
Battery Type:844.8VDC
Single Cell Capacity:314Ah
Battery Level:265kW
Voltage Range:765.6-950.4VDC
Max. Charge Current:157A
Max.Discharge Current:157A

D.Model:ESS-GS002-HVA209KWH

Case Design:Rack-mounted
Nominal Voltage:LiFePO4
Module Configuration:1P26S
Number Of Modules:8
Battery Type:665.6VDC
Single Cell Capacity:314Ah
Battery Level:209kW
Voltage Range:603.2-748.8VDC
Max. Charge Current:157A
Max.Discharge Current:157A

Module size(Excluding rack):
Product (L’W*H):1150*440*230mm
Package (L*W*H):1230*520*420mm
N.W.:178kg
G.W.:200kg



E.Model:ESS-GS002-HVA235KWH

Case Design:Rack-mounted
Nominal Voltage:LiFePO4
Module Configuration:1P26S
Number Of Modules:9
Battery Type:748.8VDC
Single Cell Capacity:314Ah
Battery Level:235kW
Voltage Range:678.6-842.4VDC
Max. Charge Current:157A
Max.Discharge Current:157A

Module size(Excluding rack):
Product (L’W*H):1150*440*230mm
Package (L*W*H):1230*520*420mm
N.W.:178kg
G.W.:200kg



F.Model:ESS-GS002-HVA261KWH

Case Design:Rack-mounted
Nominal Voltage:LiFePO4
Module Configuration:1P24S
Number Of Modules:10
Battery Type:832VDC
Single Cell Capacity:314Ah
Battery Level:261kW
Voltage Range:754-936VDC
Max. Charge Current:157A
Max.Discharge Current:157A

Module size(Excluding rack):
Product (L’W*H):1150*440*230mm
Package (L*W*H):1230*520*420mm
N.W.:178kg
G.W.:200kg
