Solar inverter energy storage system battery

Description

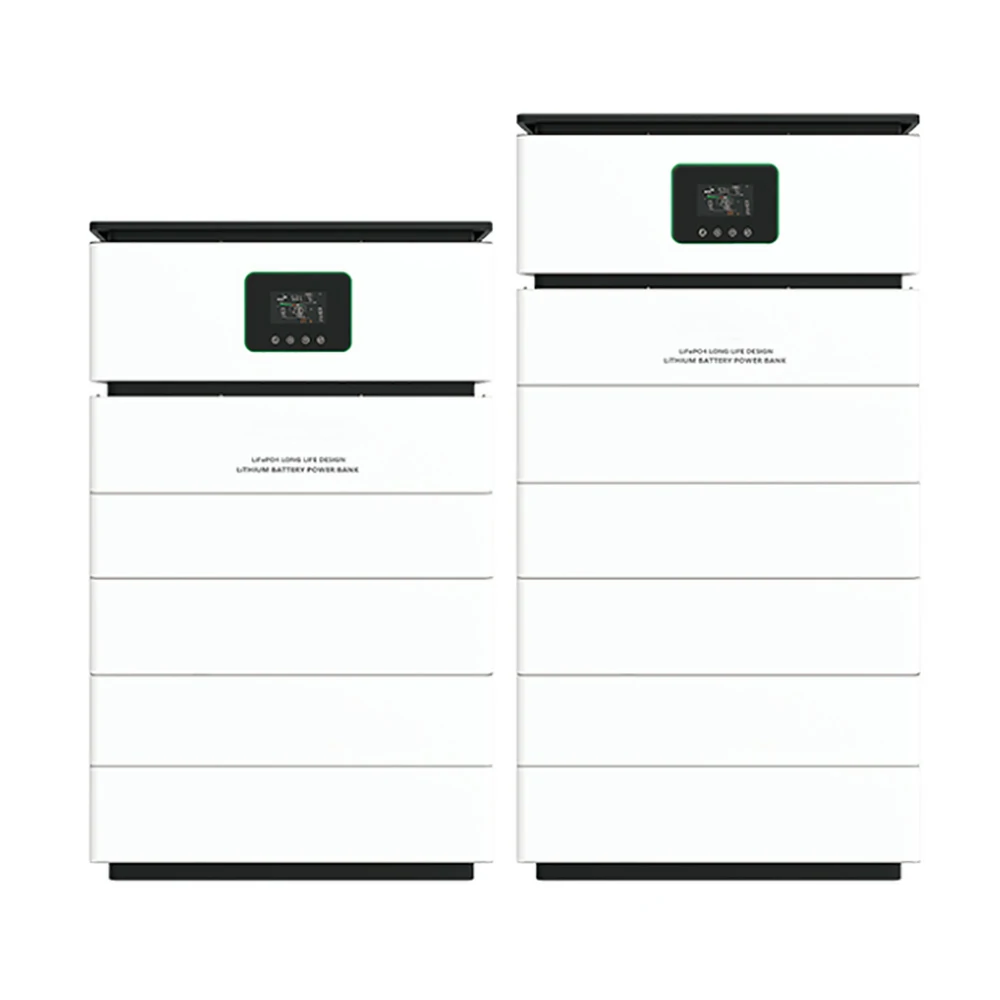

Solar inverter energy storage system battery

Model:HESS-HX001

Integrated system with built-in 48V lithium battery module. 6kW hybrid solar inverter, solar/AC charger.
LiFPO4 battery has a cycle time of up to 6000 charge/discharge cycles and a long lifespan
Equipped with 120A mppt solar charging and AC charging functions
Modular and stacked design, easy to install and expand
comprehensive protection
Built in intelligent BMS with communication protocol
DOD 80%， Warranty for 5 years, designed for a lifespan of over 10 years
Five year warranty.

Specifications:

Nominal input voltage 230VAC 50HZ
Low loss voltage 170Vac ± 7 (UPS), 90Vac ± 7% (home appliances)
Low loss Retur m voltage 180Vac ± 7 (UPS), 100Vac ± 7% (home appliances)
High loss voltage 280Vac ± 7
High loss return voltage 270Vac ± 7
Maximum AC input voltage 300Vac
Nominal input frequency 50Hz/60Hz (automatic detection)
Maximum AC charging current of 120A

Solar energy input
Nominal PV voltage 360Vdc
Photovoltaic array MPPT voltage range 120Vdc~450Vdc
Maximum open circuit voltage of photovoltaic array 500Vdc
The maximum solar charging current is 120A

protect
Protection against overcharging, overdischarging, overcurrent, short circuit, and overheating

environment
Noise (dB)<30 ℃<40dB (1 meter)
Working temperature -10 ℃~+50 ℃
Humidity 0~95% (no condensation)
Sea level (m) ≤ 1500

Other
Efficiency 92.00%
5-year warranty

Product Version:

1.HX001-5KWH

Inverter type:6KW/48V

Rated output power:6KW

Output voltage waveform:pure sine wave

Output voltage:230VAC 50HZ

Low DC warning voltage:45.8Vdc

Low DC cut-off voltage: 44.8Vdc

DC warning circuit voltage low:46.8Vdc

Total charging current (grid+solar energy):120A Max.

Large capacity charging voltage:57.6Vdc

Floating charging voltage:56.0Vdc



Normal battery voltage (Vdc):51.2V

Normal battery capacity (25 ℃ 0.2C) (Ah):5.12KWH

Operating voltage range (Vdc):44.8~57.6V

Maximum continuous discharge current (A):100A

Maximum pulse discharge current (A):100A 1 Sec.

Maximum continuous charging current (A):50A



2.HX001-10KWH

Inverter type:6KW/48V

Rated output power:6KW

Output voltage waveform:pure sine wave

Output voltage:230VAC 50HZ

Low DC warning voltage:45.8Vdc

Low DC cut-off voltage: 44.8Vdc

DC warning circuit voltage low:46.8Vdc

Total charging current (grid+solar energy):120A Max.

Large capacity charging voltage:57.6Vdc

Floating charging voltage:56.0Vdc



Normal battery voltage (Vdc):51.2V

Normal battery capacity (25 ℃ 0.2C) (Ah):10.24KWH

Operating voltage range (Vdc):44.8~57.6V

Maximum continuous discharge current (A):200A

Maximum pulse discharge current (A):300A 1 Sec.

Maximum continuous charging current (A):100A



3.HX001-15KWH

Inverter type:6KW/48V

Rated output power:6KW

Output voltage waveform:pure sine wave

Output voltage:230VAC 50HZ

Low DC warning voltage:45.8Vdc

Low DC cut-off voltage: 44.8Vdc

DC warning circuit voltage low:46.8Vdc

Total charging current (grid+solar energy):120A Max.

Large capacity charging voltage:57.6Vdc

Floating charging voltage:56.0Vdc



Normal battery voltage (Vdc):51.2V

Normal battery capacity (25 ℃ 0.2C) (Ah):15.36KWH

Operating voltage range (Vdc):44.8~57.6V

Maximum continuous discharge current (A):300A

Maximum pulse discharge current (A):450A 1 Sec.

Maximum continuous charging current (A):150A



4.HX001-20KWH

Inverter type:6KW/48V

Rated output power:6KW

Output voltage waveform:pure sine wave

Output voltage:230VAC 50HZ

Low DC warning voltage:45.8Vdc

Low DC cut-off voltage: 44.8Vdc

DC warning circuit voltage low:46.8Vdc

Total charging current (grid+solar energy):120A Max.

Large capacity charging voltage:57.6Vdc

Floating charging voltage:56.0Vdc



Normal battery voltage (Vdc):51.2V

Normal battery capacity (25 ℃ 0.2C) (Ah):20.48KWH

Operating voltage range (Vdc):44.8~57.6V

Maximum continuous discharge current (A):400A

Maximum pulse discharge current (A):600A 1 Sec.

Maximum continuous charging current (A):200A
