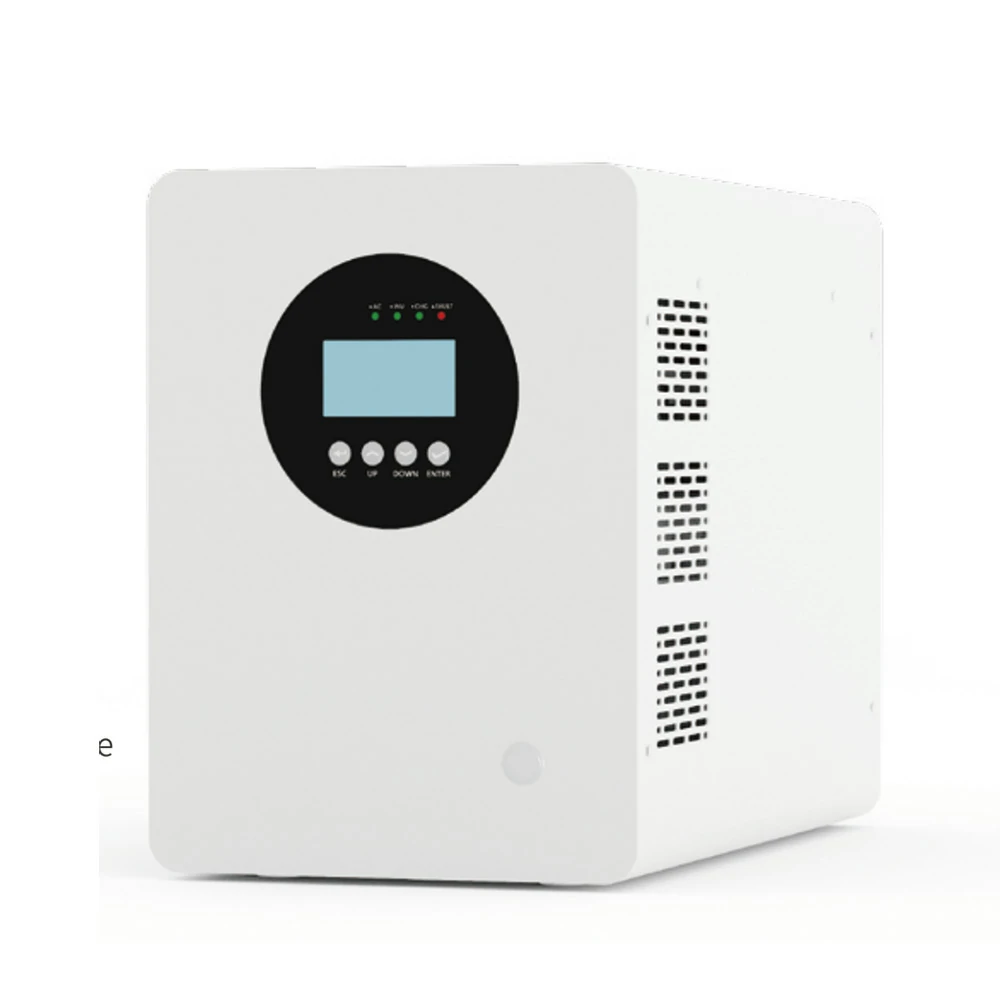

new square inverter energy storage integrated machine

Description

new square inverter energy storage integrated machine

Model:ESS-AIO005

Inverter + BMS + Battery, integrated design
Support solar charging
Support grid charging
Supports Type-C & USB phone charging
Up to 8000 cycles life

Product Version:

PVInput
Max.Input Capacity (W):800
Max.Input Current (A):18
PVInput Short-circuit Current (A):20
Open Circuit Voltage(VDC):115
start-up Voltage (VDC):20
MPPTVoltageVDC):17~115
ACInput
Rated Input Voltage(VAC):208/220/230/240;L+N+PE
Voltage Range (VAC):90~280士3 (normal mode); 170~280士3 (UPS mode)
Frequency (Hz):50/60
Max Bypass Input Current:10
AC Output
Rated Capacity (KVA):1.2
Voltage (VAC):208/220/230/240
Frequency (Hz):50/60Hz士0.1%
Wave Form:Pure Sine Wave
Battery Mode Overload Capacity:60s@102%<Load &<120% Load;10s@120%<Load& <200% Load
Battey Mode Max Efficiency:90%@12VDC
Switch Time (ms):<10

General Data
reveal:LCD
communication:USB
Monitoring:WiFi
Ingress Protection:IP20
Operating Temperature:Charge0°C~+55°C;Discharge-20°C~+55°C
Relative Humidity:5%~95% (Non-condensing)
Max.Operating Altitude:4000m (Derating above 2000m)



Model:ESS-AIO005-1.2KW1.28KWH

Battery
Nominal Energy:1.28kwh
Nominal Voltage:12.8Vdc
Usable Energy(90%DOD):1.15kwh

Max ACChargeCurrent(A) 50
MaxPVChargeCurrent(A) 50
Max Charge Current (PV+AC) (A) 100
Max.DischargeCurent (A) 110
OperatingVoltageRange 10.8Vdc～14.6Vdc

Dimension
LxWxH(products size):400x220x313mm
LxWxH(package size):456x276x366mm
Weight(NW Kg):21
Weight(GW Kg):22
Quantity 20GP :  420
Quantity 40GP:   760
Quantity 40HQ:  1050



Model:ESS-AIO005-1.2KW2.56KWH

Battery
Nominal Energy:2.56kwh
Nominal Voltage:12.8Vdc
Usable Energy(90%DOD):2.3kwh

Max ACChargeCurrent(A) 50
MaxPVChargeCurrent(A) 50
Max Charge Current (PV+AC) (A) 100
Max.DischargeCurent (A) 110
OperatingVoltageRange 10.8Vdc～14.6Vdc

Dimension
LxWxH(products size):400x220x313mm
LxWxH(package size):456x276x366mm
Weight(NW Kg):27
Weight(GW Kg):28
Quantity 20GP :  420
Quantity 40GP:   600
Quantity 40HQ:  920



Model:ESS-AIO005-1.2KW3KWH

Battery
Nominal Energy:2.94kwh
Nominal Voltage:12.8Vdc
Usable Energy(90%DOD):2.65kwh

Max ACChargeCurrent(A) 50
MaxPVChargeCurrent(A) 50
Max Charge Current (PV+AC) (A) 100
Max.DischargeCurent (A) 110
OperatingVoltageRange 10.8Vdc～14.6Vdc

Dimension
LxWxH(products size):400x220x313mm
LxWxH(package size):456x276x366mm
Weight(NW Kg):30
Weight(GW Kg):31
Quantity 20GP :  420
Quantity 40GP:   540
Quantity 40HQ:  832
